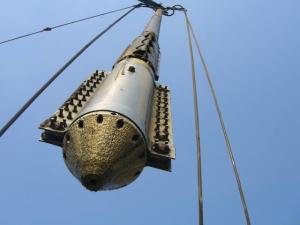

APIE APV75E-426 Vibroflot Equipment Supporting Device Top Feed Vibroflot

Brand Name : APIE

Model Number : APV75E-426

Place of Origin : China

MOQ : 1 set

Price : $50,000.00/set

Supply Ability : 10 Set/Sets per Month

Delivery Time : 25 days

Packaging Details : Nude packing and Wooden case package according to No. of your ordering.

Motor power : 75KW

Rate current : 148A

Max. speed : 1450r/min

Max. amplitude : 16mm

Vibration force : 180kg

Weight : 2018kg

External diameter : 426mm

Length : 2783mm

Diameter of the length work pile : 1000-1200mm

Contact Now

Vibroflot Compaction is a deep compaction technique for densifying granular soils with less than 10 –15% silt present. This method is popular for improving reclaimed land. Under the influence of simultaneous vibration and
saturation, loose sand and or gravel particles are repacked into a denser state and lateral confining pressure within the soil
mass is increased.The Vibroflot is normally suspended from a standard crawler crane or a piling rig.

Max rotation speed 1200-1800rpm
Working pile diameter 900-1200mm
Frequency 40-60Hz
System air pressure 6 bar
Centrifulgal force 200-300kN
Hopper capacity 1.2m3
Feeding pipe inner dia DN25 mm
Electrical control mode Inverter drive
Cooling mode Circulating water cooling
Air flow rate 10m3/min

Vibroflot Compaction is a deep compaction technique for densifying granular soils with less than 10 –15% silt present. This method is popular for improving reclaimed land. Under the influence of simultaneous vibration and
saturation, loose sand and or gravel particles are repacked into a denser state and lateral confining pressure within the soil
mass is increased.The Vibroflot is normally suspended from a standard crawler crane or a piling rig.

Max rotation speed 1200-1800rpm
Working pile diameter 900-1200mm
Frequency 40-60Hz
System air pressure 6 bar
Centrifulgal force 200-300kN
Hopper capacity 1.2m3
Feeding pipe inner dia DN25 mm
Electrical control mode Inverter drive
Cooling mode Circulating water cooling
Air flow rate 10m3/min
